main product photo

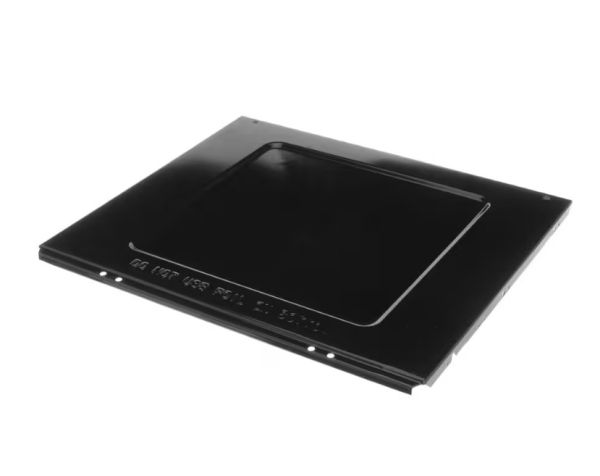

Frigidaire 316400601 Range Oven Bottom Panel

Be the first to review this product
Special Price $67.15 Regular Price $88.71
In stock
Available Quantity:   90
SKU
316400601

Product Description

The Frigidaire 316400601 Range Oven Bottom Panel is installed at the bottom part of the oven to shield the inside part of the oven. It is designed to fit well into place, it does not allow grease and food particles to settle in the small crevices. This panel also helps in distributing the heat evenly, enhancing the cooking process. It is made of tough material and hence can withstand damage and tear to give better performance.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/3/1/316400601-72624.jpg

This Part Fits the Following Models (904)

Frigidaire LFEF3017LMC Electric Range Frigidaire LFEF3017LMB Electric Range Frigidaire LFEF3018LWD Range Frigidaire LFEF3018LWC Electric Range Frigidaire LFEF3018LWA Range Frigidaire LFEF3018LWB Electric Range Frigidaire LFEF3017LWD Range Frigidaire LFEF3017LWC Range Frigidaire LFEF3017LWB Range Frigidaire LFEF3017LSE Range Frigidaire LFEF3017LWA Range Frigidaire LFEF3017LSD Range Frigidaire LFEF3017LQB Range Frigidaire LFEF3017LSA Electric Range Frigidaire LFEF3017LSC Electric Range
Showing 1-15 of 904
Manufacturer Name: FRIGIDAIRE
Product Number: 316400601
OEM Part Number: 316400601
Product Description: Oven Bottom Panel

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Frigidaire 316400601 Range Oven Bottom Panel
Your Rating
FAQS
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: The range should be disconnected from the wall outlet. It should ensure that the circuit breaker supplying power to the range is turned off.

Step 2: The drawer positioned beneath the range should be taken out.

Step 3: The screws situated at the edge of the rear panel by the cabinet should be detached. These screws secure the back panel in position.

Step 4: The back panel of the oven should be gently elevated and removed.

Step 5: The two screws located on the oven's bottom panel should be loosened.

Step 6: The panel should be carefully extracted downward and out of the oven.

Step 7: A new replacement bottom panel should be acquired from a reputable home appliance retailer. It will likely be marked '316400601'.

Step 8: The panel should be inserted into the oven, ensuring the screw holes align with the mountings.

Step 9: The panel should be fastened into the oven by tightening the screws into their respective slots.

Step 10: The back panel should be repositioned by aligning it with the upper edge of the oven frame.

Step 11: The screws that were removed earlier should be reattached.

Step 12: The drawer should be reinserted into its original position.

Step 13: The circuit breaker should be reactivated and the stove should be reconnected to the wall outlet.

Step 14: The range should be verified to ensure it operates properly.

Congratulations! The bottom panel of your Frigidaire range has been successfully replaced!

Please remember, these guidelines serve as general advice and should always be used alongside the manufacturer's manual, if it is accessible.
