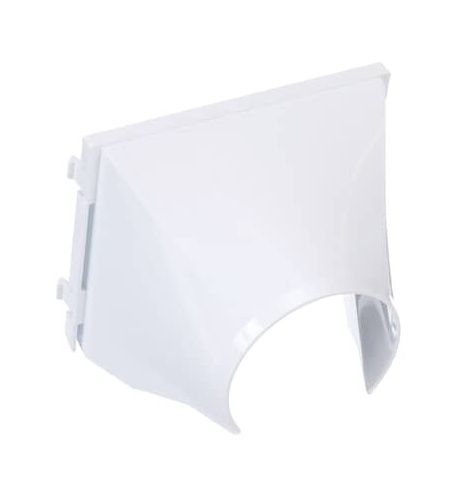

main product photo

LG 3016JA2002C Refrigerator Funnel Assembly

Be the first to review this product
Special Price $16.77 Regular Price $17.24
Out of stock
Available Quantity:   0
SKU
3016JA2002C

Product Description

The LG 3016JA2002C Refrigerator Funnel Assembly relies on water that is in the dispenser tubing flowing into the dispenser outlet, which is accessible to the user and the stream flows in a proper manner when the dispenser is on. It works as a molded channel that gets water from the internal supply line and flows it towards the dispensing point without splashing. It is attached to the refrigerator door behind the dispenser interface and attached to the housing. The funnel assembly assists in providing consistent dispensing performance.
Add to Wish List
Refrigerator Parts, Dispensers,
Manufacturer
https://www.hnkparts.com/media/catalog/product/3/0/3016ja2002c.jpg

This Part Fits the Following Models (18)

Showing 1-15 of 18
Manufacturer Name: LGE
Product Number: 3016JA2002C
OEM Part Number: 3016JA2002C
Product Description: Funnel Assy

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:LG 3016JA2002C Refrigerator Funnel Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the LG 3016JA2002C Funnel Assembly?

Regularly inspect the funnel assembly for cracks or buildup and clean with mild soapy water. Ensure it is properly aligned to prevent leaks. Avoid harsh chemicals, and always disconnect the refrigerator from power before performing maintenance to ensure safety.

What are common issues with the LG 3016JA2002C Funnel Assembly?

  • Cracks or breaks causing leaks.
  • Improper fit leading to spillage.
  • Clogging from food residue.
  • Misalignment affecting ice or water dispensing.

Installation Steps

Step1: Disconnect refrigerator power supply before starting installation.

Step2: Remove the existing funnel assembly from the mounting area carefully.

Step3: Align the new funnel assembly with inlet port and brackets.

Step4: Secure it firmly using compatible screws or locking clips.

Step5: Restore power and check for proper water flow and leaks.

Step6: Ensure hands are dry and use insulated tools to avoid electrical shock risks during installation.
