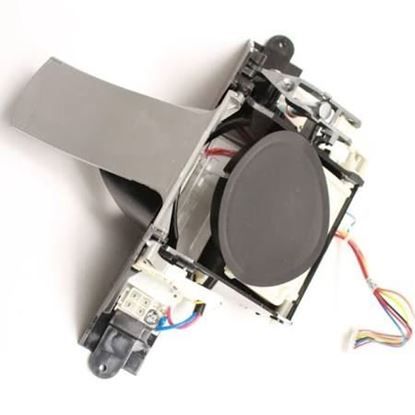

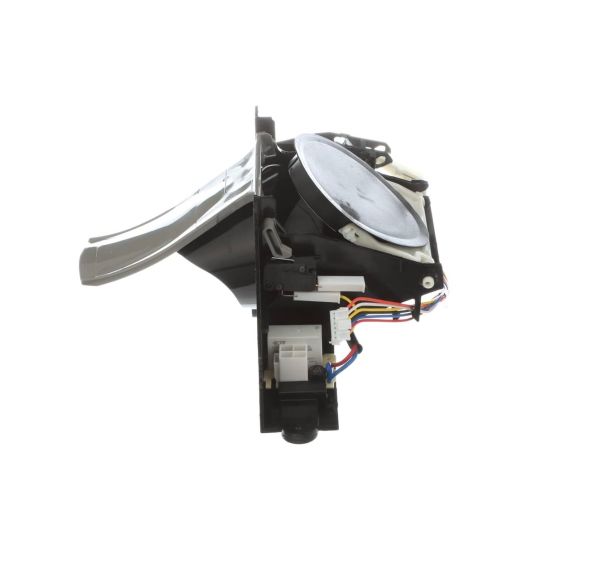

Frigidaire 242074223 Refrigerator Dispenser Funnel Frame Module

Be the first to review this product
Special Price $139.12 Regular Price $188.99
In stock
Available Quantity:   33
SKU
242074223

Product Description

The Frigidaire 242074223 Refrigerator Module Dispenser Funnel Frame is designed to provide a smooth dispensing of ice and water. It operate in such a way that it directs the dispensed water or ice to the right receptacle while at the same time ensuring the functionality of the dispenser. The working process is based on its durability that encloses components and does not allow leakage.
Add to Wish List
Manufacturer
✓ This Product Replaces: 241753412, 242074205, 242074211
https://www.hnkparts.com/media/catalog/product/2/4/242074223-22956.jpg

This Part Fits the Following Models (104)

Frigidaire FGUS2645LF0 Refrigerator Frigidaire FGUS2645LF1 Refrigerator Frigidaire FGUS2647LF0 Refrigerator Frigidaire FGUS2647LF1 Refrigerator Frigidaire FGUS2647LF2 Refrigerator Frigidaire FGUS2647LF3 Side-By-Side Refrigerator Frigidaire FGUS2642LF1 Refrigerator Frigidaire FGUS2642LF0 Refrigerator Frigidaire FGHS2342LF0 Refrigerator Frigidaire FGHS2644KM0 Refrigerator Frigidaire FGHS2644KM1 Refrigerator Frigidaire FGHS2644KM3 Refrigerator Frigidaire FGHS2644KM2 Refrigerator Frigidaire FGHS2344KF3 Refrigerator Frigidaire FGHS2344KF4 Refrigerator
Showing 1-15 of 104
Manufacturer Name: FRIGIDAIRE
Product Number: 242074223
OEM Part Number: 242074223
Product Description: Dispenser Module
