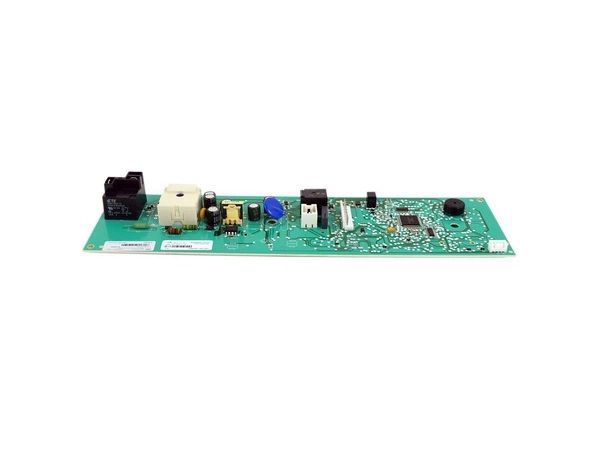

The Frigidaire 134557201NH Electronic Control Board is used to control the cycles, temperature, and timing for proper functioning of the dryer. The control of heat, motor, and drying cycles, to deliver results from inputs and sensors. Designed for longevity, increases energy consumption, protects from overheating, and increases the accuracy of drying. Increases the durability and decreases the maintenance.
Step 1: The refrigerator should be disconnected from the power source and the back panel of the fridge should be taken off. A flashlight should be utilized to examine the wires and connectors behind the panel for any visible damage.
Step 2: The screws that hold the control board in position should be taken out and the flathead screwdriver should be employed to gently detach the protective cover from the board.
Step 3: The wires should be carefully unhooked from the board, with a note of their connections being made. The multimeter should be utilized to verify the board for any indications of damage or deterioration.
Step 4: After the issue has been identified and verified, or if the board appears intact, the new one should be installed.
Step 5: The new board (Frigidaire 134557201NH) should be placed into the designated slot and fastened using the screws removed earlier. The wires should be reconnected individually and the multimeter should be used to confirm continuity for each connection.
Step 6: The protective cover should be reattached over the board prior to securing the back panel with the screws that were taken off previously.
Step 7: Power should be restored at the circuit breaker, and your Frigidaire 134557201NH should now operate correctly.
Well done! The control board in your Frigidaire 134557201NH has been successfully swapped.
Please note that these instructions should serve as general guidance and should always be utilized alongside the manufacturer's manual when available.
