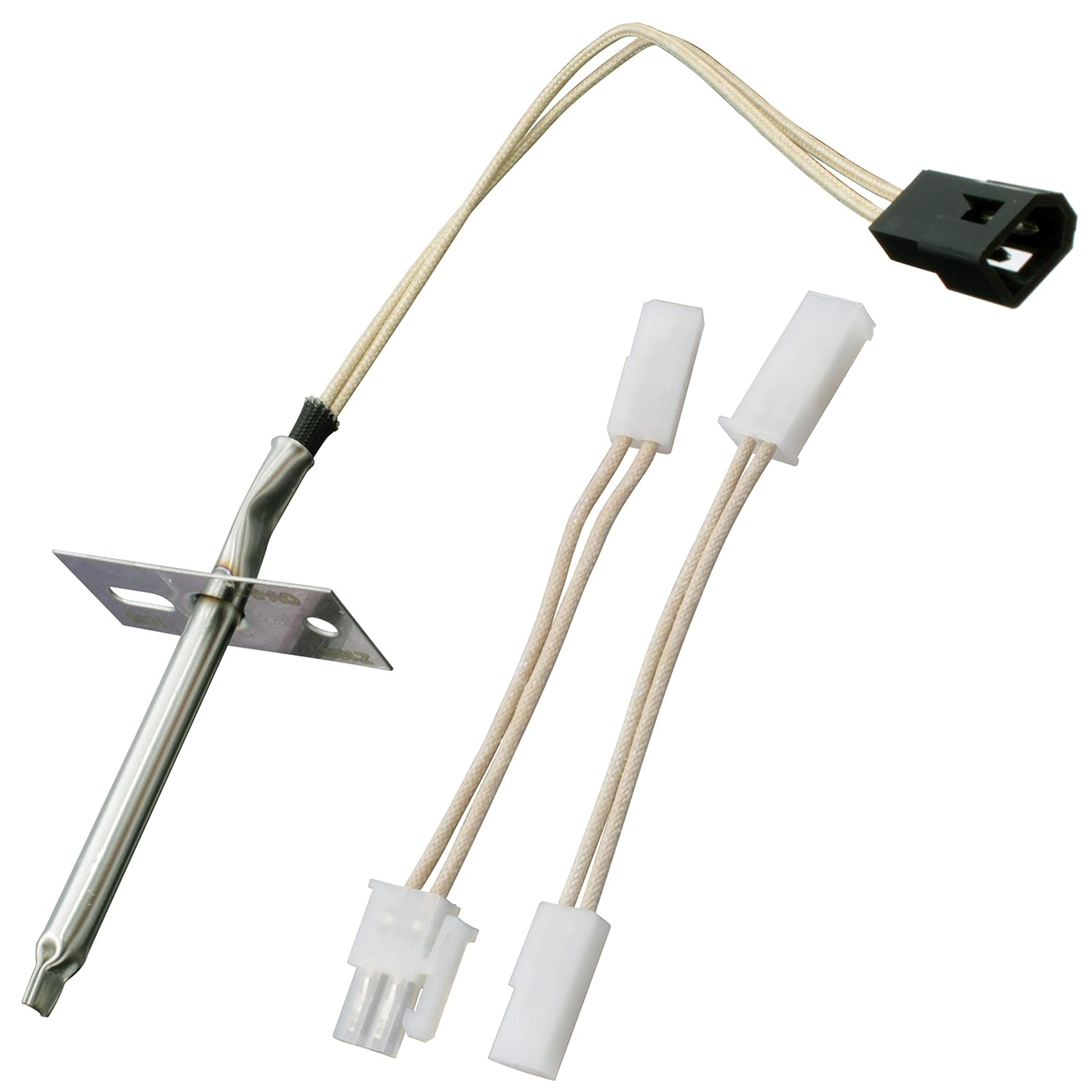

Whirlpool 12001655 Oven Sensor short

Be the first to review this product
Special Price $18.98 Regular Price $34.55
In stock
Available Quantity:   24
SKU
12001655

Product Description

The Whirlpool 12001655 is an essential device within your Whirlpool oven, primarily functioning as an oven sensor. This sensor is essential for safeguarding correct and consistent cooking temperatures since it constantly monitors the heat level inside the oven cavity. It functions as a thermometer, continuously measuring the temperature and relaying the information to the oven's control board. The control board then employs this temperature data to adjust the heating elements. For example, if the sensor detects a temperature lower than the one you choose, it instructs the control board to activate the heating components until the desired temperature is achieved. If the sensor detects a temperature higher than the set point, the control board decreases power to the heating components.

Add to Wish List
Manufacturer
✓ This Product Replaces: 74004470, 74004944, 74005192, 04000051, 12001555, 74003413, 7430P001-60, 7430P002-60, 7430P004-60, 7430P007-60, 7430P007-60K, 7430P009-60
https://www.hnkparts.com/media/catalog/product/1/2/12001655-17092.jpg

This Part Fits the Following Models (876)

Admiral LGR3330ADB Range Admiral LGR3330ADW Range Admiral LGR3330ADZ Range Admiral 686AJ-TKSVW Range Admiral 686AM-TKS Range Admiral 686WJ-TKSVW Range Admiral 686WM-TKS Range Admiral 687AK-TKSAW Range Admiral 687AM-TKSAW Range Admiral 687WK-TKSAW Range Admiral 687WM-TKSAW Range Admiral LGR3725ADC Range Admiral A3478XRA-N Range Admiral A3478XRW Range Admiral A3478XRW-N Range
Showing 1-15 of 876
Manufacturer Name: Maytag
Product Number: 12001655
OEM Part Number: 12001655
Product Description: Oven Sensor (Short)

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool 12001655 Oven Sensor short
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: Your oven should be disconnected from the electrical outlet.

Step 2: The screws securing the back panel should be taken out, then the back panel should be detached. Typically, these screws are positioned at the corners and sides of the oven's rear.

Step 3: The malfunctioning sensor on the back wall should be identified, within your oven. It should appear as a metal tube leading into an electrical connector.

Step 4: The electrical connection to the sensor should be unplugged by gripping the connector and pulling it out directly.

Step 5: The mounting screws that secure the sensor should be removed using a Phillips-head screwdriver.

Step 6: The defective sensor should be extracted and disposed of.

Step 7: The new sensor should be positioned into the mounting aperture on the back wall of the oven, then it should be fastened with the mounting screws.

Step 8: The electrical connection to the new sensor should be reattached by pushing the connector straight in.

Step 9: A multimeter should be utilized to verify that the sensor is functioning correctly.

Step 10: The back panel of the oven should be reattached and secured with the mounting screws.

Step 11: The power cord should be reconnected to the wall outlet and the oven should be switched on.

Step 12: The oven should be checked to confirm it is operating properly.

Well done! The 12001655 Whirlpool Oven Sensor has been successfully replaced by you.

Please remember, these directions are served as general advice and should always be utilized alongside the manufacturer's manual, if accessible.
