main product photo

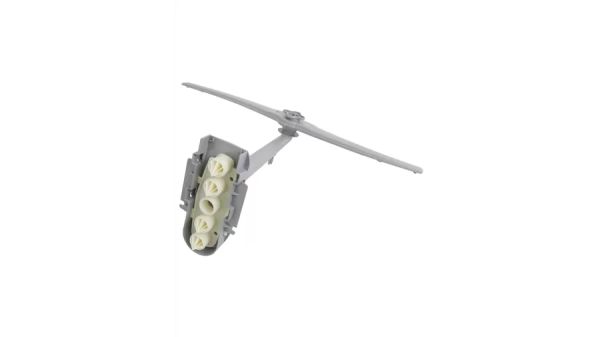

Bosch 11010054 Dishwasher Spray Arm

Rating:
5 5 1
1 Review Add Your Review
Special Price $51.58 Regular Price $60.23
In stock
Available Quantity:   43
SKU
11010054

Product Description

The Bosch 11010054 Dishwasher Spray Arm is a part which assists in making sure dishes are properly cleaned. Instead of being located in the head or spray arm to spray the dishes, they are dispersed equally around the dishes with several spray nozzles aimed at all surfaces in the wash cycle. Water pressure increases as the arm rotates, even to hard-to-clean spots. It enhances cleaning efficiency, not requiring pre-rinsing and deeper cleaning. The robust design also prevents clogging, which helps with better performance and longevity.
Add to Wish List
Arm,
Manufacturer
https://www.hnkparts.com/media/catalog/product/1/1/11010054_bosch_hnkparts.png

This Part Fits the Following Models (78)

Bosch SHV9PT53UC-98 Dishwasher Bosch SHX9PT75UC/98 Dishwasher Bosch SHX9PT75UC/B3 Dishwasher Bosch SHX9PT75UC/A5 Dishwasher Bosch SHX9PT75UC/D5 Dishwasher Bosch SHX9PT75UC/C9 Dishwasher Bosch SHX9PT75UC/B4 Dishwasher Bosch SHV9PT53UC/C9 Dishwasher Bosch SHV9PT53UC/D5 Dishwasher Bosch SHV9PT53UC/B4 Dishwasher Bosch SHV9PT53UC/B3 Dishwasher Bosch SHV9PT53UC/A5 Dishwasher Bosch SHX9PT55UC/B4 Dishwasher Bosch SHX9PT55UC/D5 Dishwasher Bosch SHX9PT55UC/C9 Dishwasher
Showing 1-15 of 78
Manufacturer Name: BOSCH
Product Number: 11010054
OEM Part Number: 11010054
Product Description: Spray Arm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Bosch 11010054 Dishwasher Spray Arm
Your Rating
FAQS
Customer Questions
What maintenance is required for the Bosch 11010054 Spray Arm?

Rinse the spray arm thoroughly to clear blocked openings affecting water flow. Ensure it rotates freely without obstruction. Confirm proper attachment to its mount. Check for debris buildup after cycles. Turn off and unplug the dishwasher before removing or reinstalling the spray arm.

What are common issues with the Bosch 11010054 Spray Arm?

  • Spray arm not rotating properly.
  • Water not distributing evenly.
  • Spray holes are not delivering water.
  • Arm disconnecting during cycles.

Installation Steps

Step1: Turn off the dishwasher and open the door fully for safe access.

Step2: Pull out the lower rack to remove the existing spray arm assembly.

Step3: Twist or release the retaining clip holding the old spray arm.

Step4: Lift the worn spray arm straight off the mounting hub.

Step5: Press the new spray arm onto the hub until it locks securely.

Step6: Reinsert the rack, close the door, and run a short rinse cycle.
