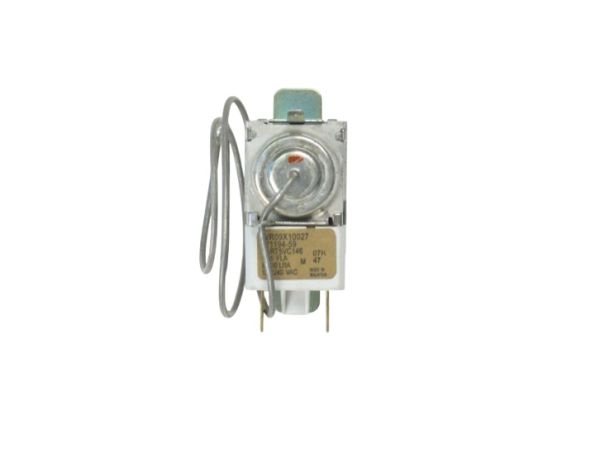

General Electric WR09X20002 Refrigerator Temperature Control Thermostat

Special Price $17.00 Regular Price $33.54
In stock
Available Quantity:   61
SKU
WR09X20002

Product Description

The General Electric WR09X20002 Refrigerator Temperature Control Thermostat is a part that is programmed to measure the temperature in the fridge and to turn the compressor on or off to achieve the required level of cooling. Once the internal temperature exceeds the set point, the thermostat will switch the compressor on to cool the unit once the target temperature has been achieved, it will switch the compressor off. This thermostat is installed in the control housing of fresh food compartments of refrigerators.

Manufacturer
https://www.hnkparts.com/media/catalog/product/w/r/wr09x20002-80396.jpg

This Part Fits the Following Models (903)

Hotpoint CTX14CIBHLAA Refrigerator Hotpoint CTX14CIBHLWW Refrigerator Hotpoint CTX14CIBHRAA Refrigerator Hotpoint HTH17BCT2LWW Refrigerator Hotpoint HTH17BCC2LWW Refrigerator Hotpoint HTH17BCC2RWW Refrigerator Hotpoint HTH17BBZ4RBB Refrigerator Hotpoint HTH17BBZ4RCC Refrigerator Hotpoint HTH17BBZ4RWW Refrigerator Hotpoint HTH17BBZZLCC Refrigerator Hotpoint HTH17BBZZLWW Refrigerator Hotpoint HTH17BBZZRBB Refrigerator Hotpoint HTH17BBZZRCC Refrigerator Hotpoint HTH17BBZZRWW Refrigerator Hotpoint HTH17BBZ4LCC Refrigerator
Showing 1-15 of 903
Manufacturer Name: GENERAL ELECTRIC
Product Number: WR09X20002
OEM Part Number: WR09X20002
Product Description: Control Temp

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WR09X20002 Refrigerator Temperature Control Thermostat
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The refrigerator is disconnected from the electrical outlet and the refrigerator liner is taken off the wall.

Step 2: The temperature cold control thermostat is found and the screws securing it are detached.

Step 3: The wires are disconnected from the thermostat and the old unit is taken out.

Step 4: The wires of the new WR09X20002 GE Refrigerator Temperature Cold Control Thermostat are attached to their respective terminals.

Step 5: The new thermostat is fastened using the screws that secured the previous one, ensuring that the wires are connected properly and tightly.

Step 6: The refrigerator liner is reinstalled onto the wall and the refrigerator is reconnected to the electrical outlet.

Step 7: The refrigerator is powered on, and the new thermostat is set to control the temperature.

Please note that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if it is available.
