main product photo

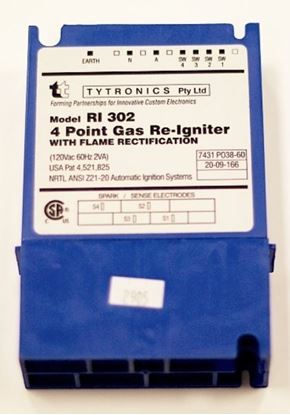

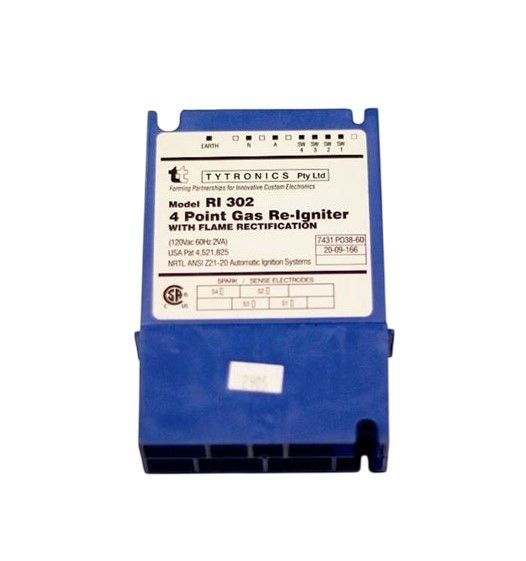

Whirlpool WPW10475147 Range Ignition Module

Rating:
5 5 2
2 Reviews Add Your Review
Special Price $137.89 Regular Price $275.47
In stock
Available Quantity:   66
SKU
WPW10475147

Product Description

The Whirlpool WPW10475147 Range Spark Module is responsible for sparking the gas burners to produce a flame that is controlled. It takes the power from the range, creates a high voltage pulse and transmits it to the burner electrodes. It is built with a view of withstanding damage and tear while it also assists in the control of lighting without requiring manual intervention.
Add to Wish List
Stove & Oven Parts, Range Parts,
Manufacturer
✓ This Product Replaces: 71002783, W10475147
https://www.hnkparts.com/media/catalog/product/w/p/wpw10475147-60649.jpg

This Part Fits the Following Models (232)

Jenn-Air JLRP436WP00 Range Jenn-Air JLRP436WP01 Range Jenn-Air JLRP536WP00 Range Jenn-Air JLRP430WP01 Range Jenn-Air JLRP430WP00 Range Jenn-Air JLRP548WP00 Range Jenn-Air JLRP536WP01 Range Jenn-Air JLRP548WP01 Range Jenn-Air JGS9900BDS16 Gas Range Jenn-Air JGS9900CDB01 Gas Range Jenn-Air JGS9900CDB00 Gas Range Jenn-Air JGS9900BDS15 Gas Range Jenn-Air JGS9900BDS Range Jenn-Air JGS9900CDS02 Gas Range Jenn-Air JGS9900CDS01 Gas Range
Showing 1-15 of 232
Manufacturer Name: WHIRLPOOL
Product Number: WPW10475147
OEM Part Number: WPW10475147
Product Description: Module-Spk

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Whirlpool WPW10475147 Range Ignition Module
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool WPW10475147 Ignition Module?

Observe ignition response when turning burner controls to confirm immediate spark generation. Ensure wiring connectors remain firmly attached and routed safely away from heat sources. Turn off gas and electrical supply before inspecting ignition system components.

What are common issues with the Whirlpool WPW10475147 Ignition Module?

  • Burner not sparking consistently.
  • Ignition is clicking without flame.
  • Delayed ignition response occurring.
  • Gas flow starts without spark.

Installation Steps

Step1: Turn off the power and gas supply to the range.

Step2: Access the rear panel to locate the ignition module.

Step3: Disconnect wiring harnesses from the old module.

Step4: Remove the mounting screws and take out the unit.

Step5: Install the new module and reconnect wires.

Step6: Reassemble and restore power and gas to test ignition.
