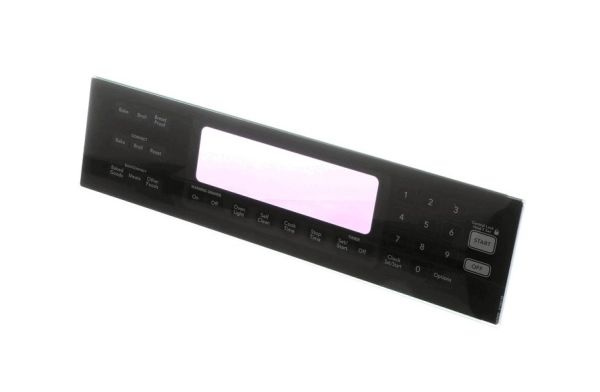

Whirlpool WP9761566 Range Membrane Switch

Special Price $192.54 Regular Price $287.66
In stock
Available Quantity:   29
SKU
WP9761566

Product Description

The Whirlpool WP9761566 Range Membrane Switch is responsible for relaying the commands from the keypad to the control board of the range. Equipped with a touchpad that is sensitive to buttons, it captures commands whenever buttons are pressed to control temperatures, time and cooking modes. The outer layer is durable to provide a stable performance and shield the inner parts from humidity and dust. This replacement part offers ease of use through smooth operation and responsiveness to allow for easy control of the cooking process.
Manufacturer
✓ This Product Replaces: 9761566
https://www.hnkparts.com/media/catalog/product/w/p/wp9761566-52887.jpg

This Part Fits the Following Models (150)

KitchenAid KGRS807SSS02 Oven KitchenAid KGRS807SBL02 Oven KitchenAid KGRS807SWH02 Oven KitchenAid KGRS807XSP00 Oven KitchenAid KERS807SSS04 Oven KitchenAid KERS807SSS03 Oven KitchenAid KERS807SBL03 Oven KitchenAid KERS807SBL04 Oven KitchenAid KESS907SWW06 Oven KitchenAid KESS907SWW05 Oven KitchenAid KESS907SBL06 Oven KitchenAid KESS907SSS06 Oven KitchenAid KESS907SSS05 Oven KitchenAid KESS907SBL05 Oven KitchenAid KERS807XSP02 Oven
Showing 1-15 of 150
Manufacturer Name: WHIRLPOOL
Product Number: WP9761566
OEM Part Number: WP9761566
Product Description: Swtch-Memb

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool WP9761566 Range Membrane Switch
Your Rating
Customer Questions
What maintenance is required for the Whirlpool WP9761566 Membrane Switch?

Test all membrane buttons for responsiveness. Keep the surface free of grease and liquid spills. Inspect the ribbon connector for secure attachment and alignment. Press buttons evenly to prevent internal wear or signal errors.

What are common issues with the Whirlpool WP9761566 Membrane Switch?

  • Buttons not registering input.
  • Display not showing selected function.
  • Selected programs not activating.
  • Display showing incorrect information.

Installation Steps

Step1: Disconnect power from the range to prevent electrical shock.

Step2: Remove the control panel by unscrewing the retaining screws.

Step3: Gently disconnect the old membrane switch from its wiring harness.

Step4: Align the new switch and connect it securely to the harness.

Step5: Reattach the control panel and tighten screws.

Step6: Restore power and test all functions before regular use.
