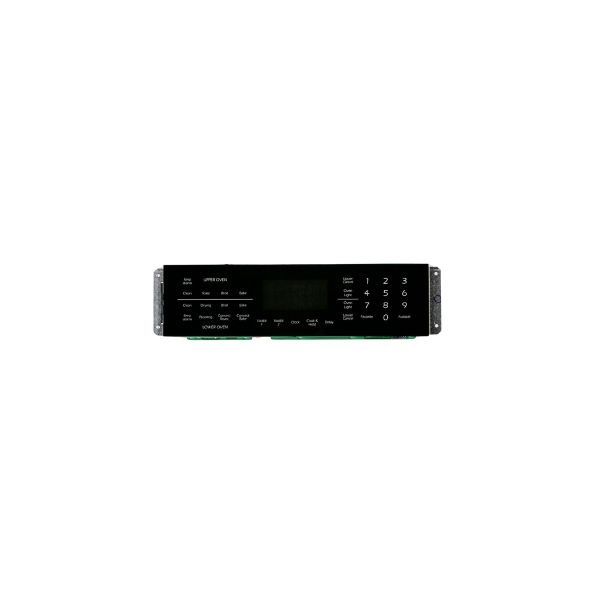

The Whirlpool WP5701M796-60 Oven Electronic Clock Control Board is responsible for controlling the cooking functions of the oven and displaying the correct time settings. It operates through the reception and analysis of inputs from the user for temperature setting, cooking options, and time settings as well as the integration with other parts of the oven. It improves productivity by providing uniform heating for proper cooking, baking, and roasting, and has digital controls for monitoring the process.
Step 1: The Whirlpool WP5701M796-60 CLOCKSWIT-Timer is disconnected from the electrical outlet.
Step 2: The rear of the timer is accessed by taking out any screws that are securing it.
Step 3: The wires are gently detached from the timer, ensuring to remember which wires were connected to which terminals.
Step 4: The new timer is positioned by adhering to the guidelines provided with it.
Step 5: The wires are reattached to the new timer, ensuring they connect to the same terminals as previously.
Step 6: The back of the timer is fastened and any screws that were taken out are reinstalled.
Step 7: The timer is reconnected to the power source and its functionality is verified.
Step 8: The settings on the timer are modified as needed.
Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if it is accessible.
