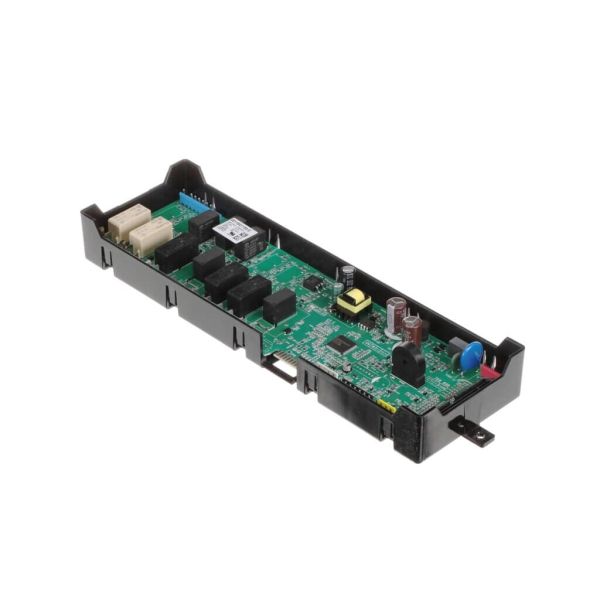

main product photo

Whirlpool W11620672 Range Control Board

Rating:
5 5 1
1 Review Add Your Review
Special Price $221.99 Regular Price $231.95
In stock
Available Quantity:   12
SKU
W11620672

Product Description

The Whirlpool W11620672 Range Control Board is used for operating the temperature and cooking features. This electronic control board designed for Whirlpool ranges manages the heating elements, time, and the buttons, ensuring accurate cooking results. The controller takes signals from the oven’s sensors and what the user has chosen, and then sends power to the bake and broil elements.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11620672 Range Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11620672 Control Board?

Verify all wiring connections are fully seated. Keep the board area free of dust and moisture. Confirm that controls respond accurately to all input commands. Monitor operation to ensure consistent signal communication and proper execution of cycles.

What are common issues with the Whirlpool W11620672 Control Board?

  • Burners not heating to set temperature.
  • Program cycles not starting.
  • Unexpected shutdowns.
  • Functions not executing as selected.

Installation Steps

Step1: Turn off power at circuit breaker before installation begins.

Step2: Remove rear or top control panel to access board.

Step3: Label and disconnect wiring harnesses carefully from old board.

Step4: Unscrew and remove faulty control board assembly.

Step5: Install new board and reconnect all electrical connectors securely.

Step6: Reassemble panel and test all range functions after power restore.
