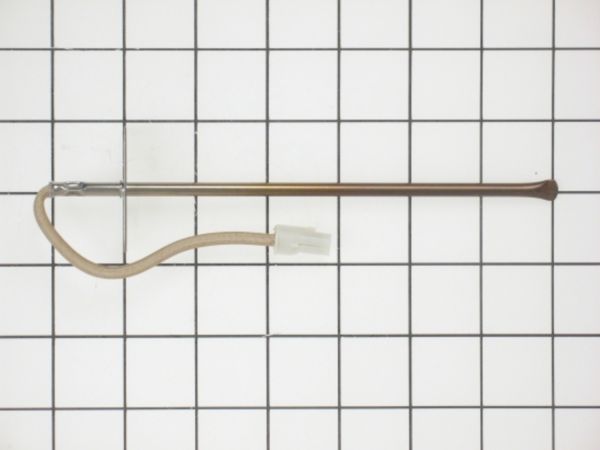

main product photo

General Electric WB23T10015 Range Sensor Assembly

Be the first to review this product
Special Price $19.40 Regular Price $22.22
In stock
Available Quantity:   24
SKU
WB23T10015

Product Description

The General Electric WB23T10015 Range Sensor Assembly is the control used to make the appliance heater adjust to temperature by measuring the proper level, and supplying the control system with resistance-based feedback. It works based on a probe that responds to temperature changes so that the appliance regulates heating output during baking or broiling. It is placed on the back wall of the oven and assists in maintaining a stable temperature during the entire cooking process, and allows it to remain in line with the selected settings.
Add to Wish List
Manufacturer

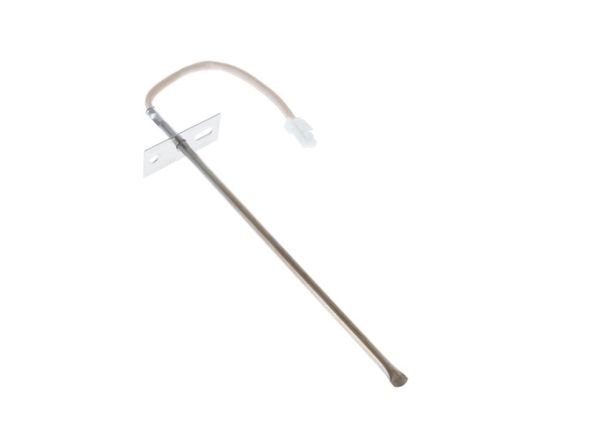

https://www.hnkparts.com/media/catalog/product/w/b/wb23t10015-29458.jpg

This Part Fits the Following Models (1124)

GE PT960WM1WW Wall Oven GE PT960WM2WW Wall Oven GE PT970BM1BB Oven GE PT970BM3BB Wall Oven GE JCTP30BM1BB Electric Oven GE JCTP30BM2BB Electric Oven GE JCTP30DP1BB Electric Oven GE JCTP30DP1WW Electric Oven GE JCTP30DP2WW Electric Oven GE JCTP30SM1SS Electric Oven GE PT970CM1CC Oven GE PT970CM3CC Wall Oven GE PT970SM4SS Wall Oven GE PT970WM1WW Oven GE PT970WM3WW Wall Oven
Showing 1-15 of 1124
Manufacturer Name: General Electric
Product Number: WB23T10015
OEM Part Number: WB23T10015
Product Description: Sensor Asm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WB23T10015 Range Sensor Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: Start by disconnecting the range from its electrical outlet to guarantee your safety during the installation process.

Step 2: A Phillips screwdriver should be employed to take out the screws located at the back of the oven, which are held securely by the rear panel.

Step 3: After the rear panel has been taken off, the WB23T10015 GE Sensor probe should be identified and the wiring harness should be detached.

Step 4: The old sensor probe should be extracted and pulled away from the oven wall.

Step 5: The new WB23T10015 GE Sensor Probe should be positioned into the opening in the oven wall and fastened with the provided screws.

Step 6: The wiring harness should be reattached to the new sensor probe.

Step 7: The rear panel should be reinstalled and the screws should be tightened.

Step 8: The range should be reconnected to its electrical outlet.

Step 9: The operation of the new sensor probe should be verified to confirm it is working properly.

Please remember that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if one is accessible.
