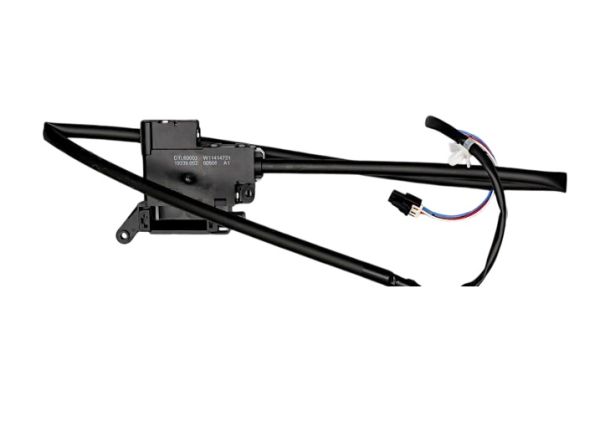

The Whirlpool W11513248 Lid Lock Assembly is designed to safely and effectively lock the lid of the washer during the cycles to avoid any openings. Increases safety and allows for the maintenance of optimal washing. Works by sensing the position of the lid and the lock which informs the washer to start or to continue the washing process. When the cycle is over, the lock pops open and the lid is free to be opened.
Controls lid security and status within the appliance. The Whirlpool W11513248 Washer Lid Lock Assembly engages with the corresponding lid strike to secure the washer lid during designated cycle stages. It also communicates lid-status information to the appliance control system, allowing the washer to coordinate lid security with programmed wash functions. The assembly forms part of the washer's electronic lid-control and locking system, connecting the physical locking mechanism with the appliance's control circuit.
Locking Mechanism:
Engages with the corresponding lid strike to maintain the lid in a secured position during applicable washer-cycle stages. The locking components are housed within the assembly to provide controlled engagement and release
Wash Cycle Integration:
The lid lock assembly operates as part of the washer's cycle-control system by coordinating lid security with wash and spin operations. When the washer requires the lid to remain secured, the locking assembly engages and prevents the lid from opening during the applicable portion of the cycle. This connects the physical lid-locking mechanism with the washer's programmed operating sequence.
Replacement Guidelines:
Replacing the Washer Lid Lock Assembly is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify part number W11513248 and the complete washer model number before replacement. Replace the lid lock assembly if deterioration affects lid-locking function or normal washer operation.
Common Failure Symptoms:
Visible cracks or damage to the assembly housing.
Loose or worn locking components.
Inconsistent lid-position recognition.
Lid movement that does not correspond with normal locking operation.
Physical deterioration from repeated washer use.
Equipment Compatibility:
The W11513248 is used in Whirlpool washer configurations that incorporate an electronic lid-locking system. Compatibility varies by washer model and control configuration. Verify the washer model number and applicable manufacturer parts documentation before purchasing.
Can I Disable the Lid Latch if I Need to Add Something Mid-Cycle
No, it's not recommended to disable the lid latch during a wash cycle. It could downscale your washer’s performance.
What Should I Do If the Lid Latch Fails to Lock or Unlock?
If you experience issues with the lid latch not locking or unlocking, it's advisable to check for obstructions, dirt, or damage around the latch area. If it persists consult a technician for a solution.
Does the Lid Latch Contribute to Water Savings in My Washing Machine?
While the primary purpose of the lid latch is safety, it indirectly contributes to water savings by preventing water leakage during the wash cycle.
What maintenance is required for the Whirlpool W11513248 Lid Lock Assembly?
Regularly check the lid lock for debris, detergent residue, or lint that may prevent proper engagement. Wipe it with a damp cloth and avoid harsh chemicals. Ensuring the lock functions properly prevents cycle interruptions and promotes safe washer operation.
What are common issues with the Whirlpool W11513248 Lid Lock Assembly?
Washer won’t start due to the lid not locking.
Lid remains locked after cycle completion.
Mechanical failure when activating.
Electrical faults trigger error codes.
What does the Whirlpool W11513248 Washer Lid Lock Assembly control?
It secures the washer lid when locking is required and provides lid-status information to the appliance controls.
How does the lid lock assembly interact with the washer controls?
It communicates the lid's locking condition to the electronic control system during applicable cycle stages.
Why is lid locking important for washer operation?
The locking mechanism helps keep the lid secured during cycle stages when the appliance requires controlled lid access.
What component works with the W11513248 lid lock assembly?
The assembly works with the washer lid and corresponding lid strike to establish the locking connection.
How does the lid lock support automated cycle operation?
It provides the control system with information about the lid's locking condition, allowing the washer to coordinate programmed cycle stages.
Installation Steps
Step1: Unplug the washer to prevent electrical shock.
Step2: Open the washer lid and remove the screws securing the top panel.
Step3: Lift the top panel carefully to access the lid lock assembly.
Step4: Disconnect the wiring harness from the old lid lock.
Step5: Install the new lid lock and reconnect the wiring harness securely.
Step6: Tighten the screws, restore power, and test the lid lock operation.
