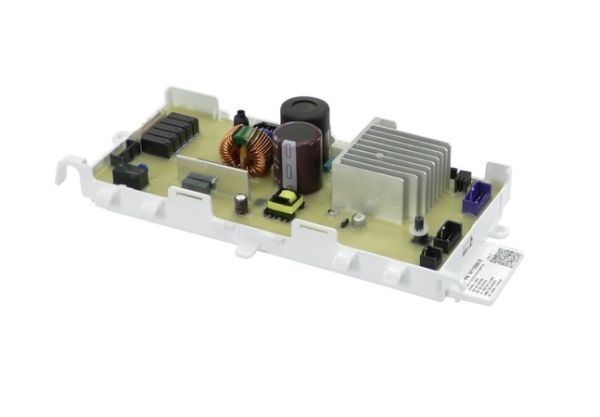

main product photo

Whirlpool W11195970 Washing Machine Electronic Control Board

Be the first to review this product
Special Price $285.09 Regular Price $314.62
In stock
Available Quantity:   12
SKU
W11195970

Product Description

The Whirlpool W11195970 Washer Electronic Control Board is a component of the washing machine that controls the motor, water valves, and sensors that are used in the washer and it operates based on the settings that are set for the washer’s cycles. It is a circuit board that gets signals from the various components of the washer and in response initiates the correct operations including starting of the motor or regulation of water temperature.
Add to Wish List
Washing Machine Parts, Control Boards,
17.25"X6.37"X3.87"
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11195970-47961.jpg

This Part Fits the Following Models (4)

Write Your Own Review
You're reviewing:Whirlpool W11195970 Washing Machine Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11195970 Electronic Control Board?

Regularly keep the control area dry and free from moisture to prevent electrical damage. Ensure wiring connections remain secure and free of corrosion. Avoid power surges by using a surge protector. Disconnect power before inspection to ensure safe handling of washing machine.

What are common issues with the Whirlpool W11195970 Electronic Control Board?

  • Washer not starting or responding to commands.
  • Cycle interruptions or failure to complete programs.
  • Error codes displayed on the control panel.
  • Inconsistent operation of wash, rinse, or spin operations.

Installation Steps

Step1: Disconnect power and unplug the washing machine to avoid electrical shock.

Step2: Remove the control panel or back panel to access the control board.

Step3: Carefully label and disconnect all wiring harnesses.

Step4: Unscrew and remove the faulty control board.

Step5: Install the new board and secure it with screws.

Step6: Reconnect all wires firmly.

Step7: Reassemble the panel and restore power to test operation.
