main product photo

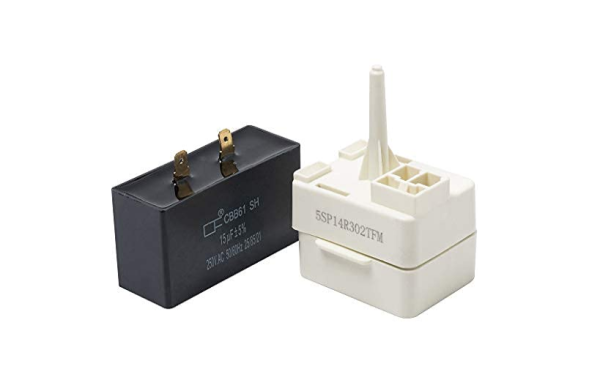

Whirlpool W10613606 Refrigerator Compressor Start Device & Capacitor

Be the first to review this product
Special Price $20.10 Regular Price $43.62
In stock
Available Quantity:   169
SKU
W10613606

Product Description

The Whirlpool W10613606 Compressor Start Device & Capacitor efficiently powers the refrigerator's compressor for reliable cooling. It momentarily boosts the compressor with an electrical charge, ensuring a smooth startup. Once activated, it disengages, allowing the compressor to run steadily and maintain optimal refrigeration. This component enhances energy efficiency by reducing strain on the compressor. It also extends the lifespan of the appliance by preventing overheating and ensuring consistent cooling performance.
Add to Wish List
Manufacturer
✓ This Product Replaces: 12468201, 67003186, 67003764, 67005560, 8171210
https://www.hnkparts.com/media/catalog/product/w/1/w10613606_whirlpool_hnkparts.png

This Part Fits the Following Models (759)

Jenn-Air JBL2088HES Refrigerator Jenn-Air JBL2086HES Refrigerator Jenn-Air JBL2086HES0 Bottom-Mount Refrigerator Jenn-Air JBD2256HEB Refrigerator Jenn-Air JBD2256HEW Refrigerator Jenn-Air JBC2088HTW Refrigerator Jenn-Air JBC2088HTB Refrigerator Jenn-Air JBD2286KEB Refrigerator Jenn-Air JFC2070KRS Refrigerator Jenn-Air JBD2286KEW Refrigerator Jenn-Air JFC2070KRB11 Bottom-Mount Refrigerator Jenn-Air JFC2070KRB Refrigerator Jenn-Air JFC2089HPF12 Bottom-Mount Refrigerator Jenn-Air JFC2089HPF Refrigerator Jenn-Air JFC2089HEP13 Bottom-Mount Refrigerator
Showing 1-15 of 759
Manufacturer Name: WHIRLPOOL
Product Number: W10613606
OEM Part Number: W10613606
Product Description: Start-Dev

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W10613606 Refrigerator Compressor Start Device & Capacitor
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: Confirm that the appropriate tools and replacement components are possessed. For the W10613606 Whirlpool Start Device Relay Overload, a Phillips head screwdriver, a multimeter (or an ohmmeter), a soldering iron, solder, and a new capacitor rated for at least 105°C (220°F) will be required.

Step 2: Deactivate the power to the refrigerator by either being unplugged or having the circuit breaker turned off.

Step 3: Remove the screws securing the relay and have the relay gently extracted from its position.

Step 4: Utilize the multimeter to inspect each connection (black, red, yellow) to verify that none of them are carrying voltage.

Step 5: Detach the wires from the existing relay.

Step 6: Attach the wires to the new capacitor, ensuring that the color connections from the old relay are matched.

Step 7: Employ the soldering iron to heat the wires and have them firmly connected to the capacitor.

Step 8: Gently reconnect the refrigerator to the power source and have it switched on.

Step 9: Observe the refrigerator for any unusual noises or indications that it may not be functioning properly.

Step 10: Verify the operation of the refrigerator to ensure it is functioning as intended.

These instructions should assist you in effectively replacing the W10613606 Whirlpool Start Device Relay Overload. Ensure that all connections are securely fastened prior to having power restored. Adhering to these instructions will help facilitate a safe and accurate replacement.

Please remember that these guidelines are intended for general assistance and should always be utilized alongside the manufacturer's manual, if one is available.
