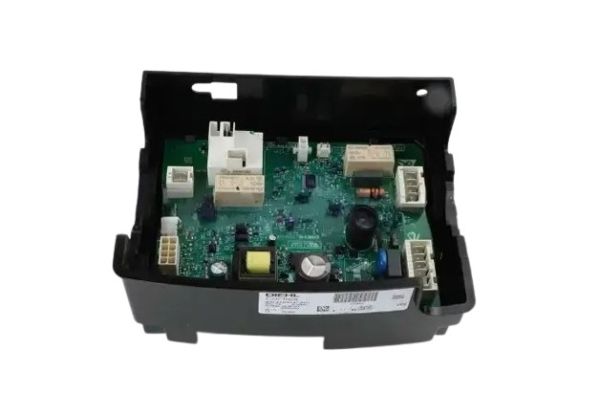

Speed Queen D518862 Dryer Output Control Board Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $115.93 Regular Price $141.95
In stock
Available Quantity:   17
SKU
D518862

Product Description

The Speed Queen D518862 Dryer Output Control Board Assembly is used to regulate electrical signals, heating cycles, motor speed and operational time. It takes input commands and allocates power to components that enhance steady drying functions. This assembly is designed to provide the correct control of performance settings and proper communication within the appliance. It is installed in the main control housing with the wiring system to ensure that the appliances operate efficiently.
Add to Wish List
Dryer Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/5/d518862.jpg

This Part Fits the Following Models (23)

Showing 1-15 of 23
Write Your Own Review
You're reviewing:Speed Queen D518862 Dryer Output Control Board Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Speed Queen D518862 Output Control Board Assembly?

Check that all wiring plugs fit securely into the control board. Keep the area around the board free from moisture or condensation. Confirm the dryer responds correctly to cycle selections. Ensure proper airflow in the control compartment for proper operation.

What are common issues with the Speed Queen D518862 Output Control Board Assembly?

  • Dryer fails to start selected cycles.
  • Cycle settings ignored.
  • Random stopping mid-cycle.
  • Heating elements not activating.

Installation Steps

Step1: Disconnect dryer from power supply to avoid electrical hazards.

Step2: Remove rear panel to access control board housing.

Step3: Label and unplug all wire connectors carefully.

Step4: Unscrew and remove faulty control board from bracket.

Step5: Mount new board securely and reconnect wiring.

Step6: Refit panel restore power and test drying functions.

Step7: Verify correct operation and ensure no loose connections after installation.
