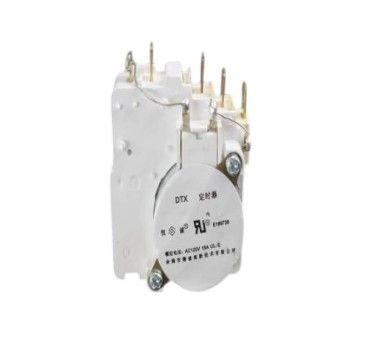

Magic Chef GYJDQ4680301B Dryer Timer

SKU: GYJDQ4680301B 4-GYJDQ4680301B Brand:
Magic Chef
Availability:
In Stock
(1)
$42.69
Have a Question? 866-723-0907

Description

The Magic Chef GYJDQ4680301B Dryer Timer is a control part that regulates the time of the cycle by moving the unit with the support of the chosen settings. Its primary objective is to manage the start, running and completion of stages in order to follow the selected program in each cycle. The timer operates on a motor-driven cam system which opens internal electrical contacts at pre-determined intervals. It is installed on the back of the control knob in the panel, and is connected to the wiring harness.

Step1: Unplug the dryer to prevent electrical shock.

Step2: Remove the control panel by unscrewing or unclipping it.

Step3: Disconnect the wiring harness from the old timer carefully.

Step4: Position the new timer and reconnect all wires to corresponding terminals.

Step5: Secure the timer with screws and reattach the control panel.

Step6: Plug in the dryer and test all timer settings for proper operation.

  • What maintenance is required for the Magic Chef GYJDQ4680301B Timer?

    Periodically check that the timer dial turns smoothly and is properly seated. Inspect electrical connections for tightness. Wipe away dust or lint near the mechanism. Verify that cycle selection operates accurately during testing.

  • What are common issues with the Magic Chef GYJDQ4680301B Timer?

    • Timer proceeding too slowly.
    • inconsistent drying times.
    • Incorrect cycle displayed.
    • Delayed start or response.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Accurate Timing
    Mircea —

    Easy to fit and instantly solved the drying delay.
