Step 1: The Speed Queen dryer is disconnected from the electrical outlet.
Step 2: The top panel of the dryer is lifted and the temperature selector switch is identified. This switch is typically positioned close to the lint filter.
Step 3: The wiring is detached from the temperature selector switch. A note is made of which wire connects to each terminal on the switch.
Step 4: The screws that secure the switch in position are taken out.
Step 5: The faulty temperature selector switch is extracted and the new one is placed in the same location.
Step 6: The wiring is reattached to the terminals on the new switch based on the notes that were recorded in step 3.
Step 7: The mounting screws are reinserted and it is ensured that they are tightened adequately.
Step 8: The top panel of the dryer is lowered and it is reconnected to the electrical outlet.
Step 9: The functionality of the new temperature selector switch is verified to ensure it operates correctly.

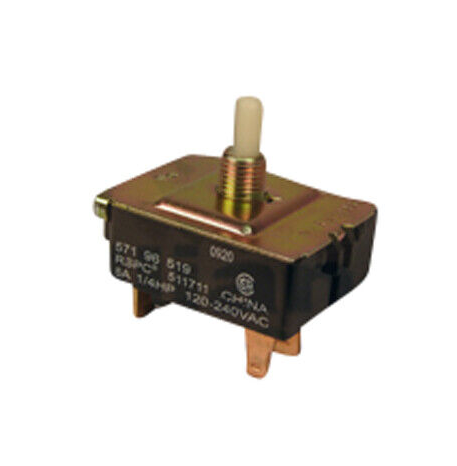

Adhering to these guidelines will assist you in replacing your Speed Queen D511711 SWITCH, TEMPERATURE SELECTOR (60HZ) effortlessly. Always ensure the dryer is unplugged before initiating any repairs or maintenance.
Please be aware that these instructions are intended for general assistance and should always be utilized alongside the manufacturer's manual, if one is accessible.
