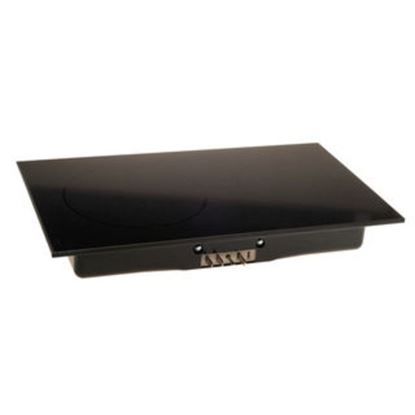

Whirlpool AR141BA Radiant Element Cartridge

Product Overview:

Provides a radiant cooking surface for modular electric cooktops. The Whirlpool AR141BA Radiant Element Cartridge is a self-contained cooking module that fits into the designated cooktop opening and supplies radiant heat for cookware. It incorporates the radiant heating elements and electrical connection interface required for operation with Whirlpool modular cooktops.

Heat Generation:

The cartridge uses integrated radiant heating elements to convert electrical energy into heat for surface cooking. Electrical power supplied through the terminal connections energizes the heating elements, producing heat that is transferred toward cookware positioned above the cooking surface. The integrated construction combines the heating elements with the supporting module structure into one functional cooking assembly.

Cooking Surface Integration:

The cartridge operates as part of the cooktop's modular surface-cooking system by combining the radiant elements, housing, and electrical connection interface within a single assembly. Its cartridge-style configuration allows the module to interface with the cooktop's corresponding mounting and electrical arrangement, positioning the radiant heating elements within the intended cooking area.

Replacement Guidelines:

Replacing the Radiant Element Cartridge is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify part number AR141BA and the complete appliance model number before replacement. Replace the cartridge if deterioration affects radiant heat generation, heating performance, or normal cooking operation.

Common Failure Symptoms:

• Surface element does not heat.
• Intermittent heating during operation.
• Uneven heat output.
• Visible damage to the cartridge.
• Damaged electrical connection terminals.
• Physical deterioration of the cartridge assembly.

Equipment Compatibility:

The WHIRLPOOL AR141BA Radiant Element Cartridge is intended for equipment that specifies part number AR141BA. Verify the cooking equipment model and manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:

Product: Radiant Element Cartridge

Part Number: AR141BA

Brand: Whirlpool

Equipment Type: Modular Electric Cooktop

• What does the Whirlpool AR141BA Radiant Element Cartridge do?

  It converts electrical energy into radiant heat for surface cooking and transfers that heat toward cookware placed above the cooking area.

• How does the radiant element generate cooking heat?

  Integrated heating elements convert electrical power into heat, which is transferred through the cooking surface to the cookware.

• What can indicate a radiant element cartridge has failed?

  No heat, intermittent heating, uneven heating, or visible damage to the cartridge can indicate a component failure.

• What role do the cartridge terminals serve?

  The terminals provide the electrical connection between the cartridge and the cooktop, allowing power to reach the integrated heating elements.

• How does the cartridge integrate with a modular cooktop?

  The cartridge fits into the designated cooktop receptacle, combining the heating elements, housing, and electrical connection within a removable cooking module.
