Product Overview:

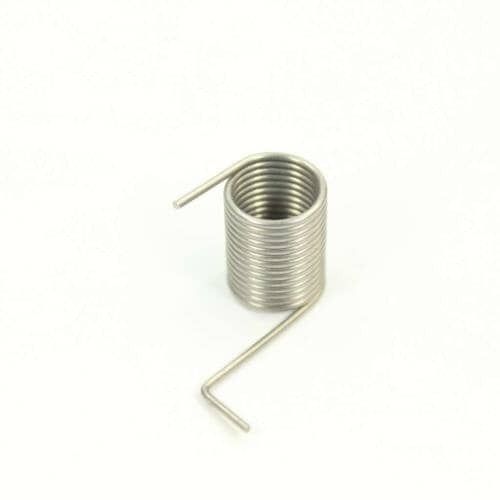

Provides the return force that moves the refrigerator's ice chute door toward its closed position after dispensing. The Whirlpool 61004388 Refrigerator Ice Door Spring is a mechanical spring component designed for refrigerator ice dispenser assemblies. It works within the chute-door mechanism to store and release mechanical energy as the door moves during dispensing. Its spring tension supports consistent return movement after the dispensing action ends.
Spring Return Force:
The spring stores mechanical energy as the ice chute door moves away from its resting position during dispensing. As the door changes position, the spring develops tension that provides a restoring force. When dispensing ends, this stored energy is released through the dispenser mechanism, helping move the chute door back toward its normal closed position. Consistent spring tension supports repeatable return movement during repeated dispensing cycles.
Ice Chute Door Operation:
The spring is positioned within the ice dispenser door mechanism and works with the chute door and related mechanical components. When the chute door moves to create an opening for ice passage, the spring responds to that movement by developing return force. Once the dispensing action ends, the spring transfers this force back through the mechanism to move the door toward its resting position. Proper spring placement and tension help maintain the intended movement of the chute door throughout repeated operation.
Replacement Guidelines:
Replacing the Refrigerator Ice Door Spring is appropriate if it is stretched, damaged, deformed, excessively worn, or otherwise deteriorated. Verify the WHIRLPOOL part number 61004388 and the complete refrigerator model number before replacement. Replace the spring if deterioration affects ice door movement, return action, positioning, or normal refrigerator operation.
Common Signs of Wear:
- Spring becoming stretched, weakened, or deformed.
- Visible corrosion or physical deterioration of the spring material.
- Spring failing to maintain its intended tension.
- Ice door becoming loose or failing to return to its intended position.
- Ice door movement becoming inconsistent or sluggish.
- Spring becoming displaced from its intended position.
- Reduced closing support for the ice door.
Equipment Compatibility:
The Whirlpool 61004388 Refrigerator Ice Door Spring is designed for select Whirlpool refrigerators equipped with the corresponding ice dispenser door mechanism. Verify the complete refrigerator model number and applicable parts information before purchasing.
Technical Specifications:
Product Name: Ice Door Spring
Brand: Whirlpool
Part Number: 61004388
Appliance Type: Refrigerator
