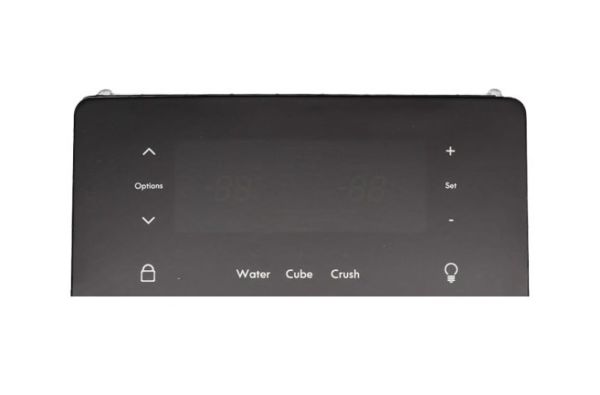

The Frigidaire 5304527934 Refrigerator Dispenser Control Board UI Assembly operates through the regulation of signals from the user interface for the flow of water and the dispensing of ice. These inputs are then processed by the control board to trigger the dispensing mechanisms whenever necessary. This assembly also helps in the proper functioning and minimizes the chances of a dispenser failure.
Connects the refrigerator's user interface with its dispenser system, the FRIGIDAIRE 5304527934 Refrigerator Dispenser Control Board UI Assembly is an electronic interface component used in specified Frigidaire refrigerators. It provides the user-facing control interface for designated dispenser functions and combines the interface with associated electronic control circuitry in a dedicated assembly.
User Input Signal Processing:
The dispenser interface uses electronic circuitry to detect selections made through the user controls and convert them into electrical signals. The control circuitry processes these input signals into defined commands that can be communicated to the refrigerator's control system. This electronic signal processing allows user selections to be recognized and transmitted as specific dispenser requests.
Dispenser Command Interface Operation:
The control board assembly serves as the electronic communication point between the user interface and the refrigerator's dispensing system. It communicates the selected command to the appropriate refrigerator controls, allowing functions such as ice or water dispensing to respond to the user's selection. This coordinated interface connects the user-facing controls with the corresponding dispenser functions without directly performing the dispensing process itself.
Replacement Guidelines:
Replacement of the FRIGIDAIRE 5304527934 Dispenser Control Board Assembly may be appropriate when the existing user interface assembly no longer responds correctly or develops an electronic fault that affects dispenser control. The replacement should correspond to the refrigerator's specific application and complete model information.
Common Failure Symptoms:
Dispenser controls becoming unresponsive.
User-interface buttons or selections failing to register correctly.
Dispenser functions not responding consistently to user commands.
Display or interface illumination behaving irregularly, where applicable.
Multiple dispenser controls becoming unavailable at the same time.
Equipment Compatibility:
The Frigidaire 5304527934 Refrigerator Dispenser Control Board UI Assembly should be matched to the applicable Frigidaire refrigerator by verifying the complete refrigerator model number and part number 5304527934 before purchase.
What maintenance is required for the Frigidaire 5304527934 Dispenser Control Board UI Assembly?
Maintain the refrigerator control board by keeping the dispenser area clean and dry to prevent moisture damage. Regularly inspect for loose connections or visible wear. Avoid using excessive force on buttons. Disconnect power before handling to ensure safety.
What are common issues with the Frigidaire 5304527934 Dispenser Control Board UI Assembly?
Unresponsive or non-functioning dispenser controls.
Display panel not lighting up or flickering.
Incorrect input recognition from buttons.
Intermittent operation or failure to activate dispenser.
What can a dispenser control board communicate during a dispensing selection?
It can process the user's selected command and communicate the corresponding control signal to the designated dispensing function.
Why can one dispenser interface have multiple controls?
A dispenser interface can combine multiple selectable commands within one control assembly when the refrigerator provides several dispensing functions.
What is the difference between a dispenser control board and a dispenser mechanism?
A dispenser control board processes user selections and communicates commands, while the associated dispensing mechanism performs the physical dispensing operation.
What can happen when the dispenser interface does not respond normally?
User selections may not be detected or communicated correctly, which can affect the associated dispensing functions.
What role does Frigidaire 5304527934 serve in a refrigerator?
Frigidaire 5304527934 serves as a dispenser control board UI assembly that connects user selections with designated refrigerator dispensing functions.
Installation Steps
Step1: Unplug refrigerator and shut off water supply to ensure safety and verify lights are off.
Step2: Remove dispenser cover and control panel screws using screwdriver and label screws for reassembly.
Step3: Disconnect wiring harness from old control board assembly carefully to avoid damage.
Step4: Install new control board, reconnect harness firmly per wiring diagram.
Step5: Secure screws and reassemble dispenser cover ensuring proper alignment.
Step6: Restore power and test dispenser functions, check water and ice output.
