main product photo

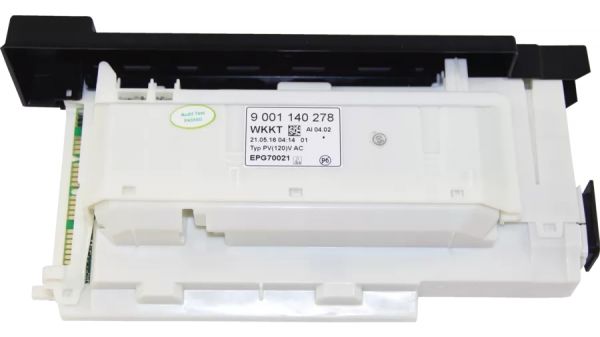

Bosch 12009543 Dishwasher Programmed Power Module

Rating:
5 5 1
1 Review Add Your Review
Special Price $193.25 Regular Price $253.95
In stock
Available Quantity:   12
SKU
12009543

Product Description

The Bosch 12009543 Dishwasher Programmed Power Module controls and manages the washing cycles, temperature, and water supply, which is useful for the operation of the machine. It receives input signals and performs preprogrammed operations for controlling the dishwasher functions for effective cleaning. It increases energy conservation, and the durability of the appliances, and improves their performance. This power module is upgrading dishwashers to enhance their performance and to make the washing of dishes simple and convenient.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/1/2/12009543_bosch_hnkparts.png

This Part Fits the Following Models (3)

Manufacturer Name: BOSCH
Product Number: 12009543
OEM Part Number: 12009543
Product Description: Control Module Programmed

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Bosch 12009543 Dishwasher Programmed Power Module
Your Rating
FAQS
Customer Questions
What maintenance is required for the Bosch 12009543 Programmed Power Module?

Periodically inspect the module for secure mounting and clean the surrounding area of dust or moisture. Check all electrical connections for tightness and corrosion. Test dishwasher cycles to ensure proper operation. Avoid jarring or pressing the module during maintenance.

What are common issues with the Bosch 12009543 Programmed Power Module?

  • Indicators or lights displaying erratically.
  • Dishwasher not responding to selected programs.
  • Water is not filling correctly during cycles.
  • Delayed operation of spray arms or pumps.

Installation Steps

Step1: Turn off the dishwasher’s electrical supply at the breaker.

Step2: Open the control panel by loosening the retaining screws.

Step3: Gently unplug the wire connectors from the existing module.

Step4: Install the replacement module and reconnect each wire securely.

Step5: Close the control panel and fasten all screws.

Step6: Switch the power back on and run a quick test cycle.
