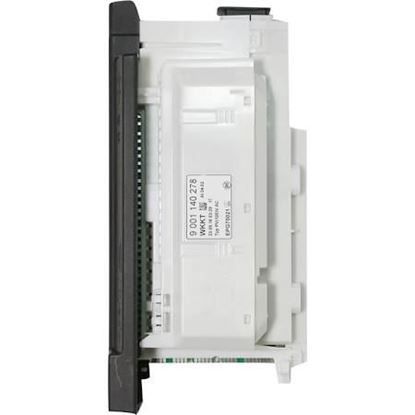

The Bosch 12009534 Dishwasher Programmed Control Module controls the wash cycles and functions with the help of programming. This electronic part controls the temperature, water flow, and cycle time to ensure better cleaning. Integrated with sensors, it controls various parameters for energy consumption and proper washing of dishes. It is aimed to increase the durability of the dishwasher and proper functioning without any problems.
What maintenance is required for the Bosch 12009534 Programmed Control Module?
Regularly inspect the control module area for signs of moisture, corrosion, or loose wiring connections. Ensure the dishwasher is powered off before any inspection. Keep the surrounding interior dry and free from detergent buildup. Avoid electrical surges by using a stable power supply.
What are common issues with the Bosch 12009534 Programmed Control Module?
Dishwasher not starting or responding to commands.
Error codes appearing on the display panel.
Inconsistent wash cycle timing or interruptions.
Failure of buttons or program selection to operation properly.
Installation Steps
Step1: Disconnect dishwasher power at the breaker to prevent electric shock.
Step2: Open the dishwasher door and remove inner panel screws.
Step3: Carefully separate the control panel to access the module.
Step4: Disconnect wiring harnesses from the old module.
Step5: Install the new module and reconnect wires securely.
Step6: Reassemble the panel and restore power to test functionality.
