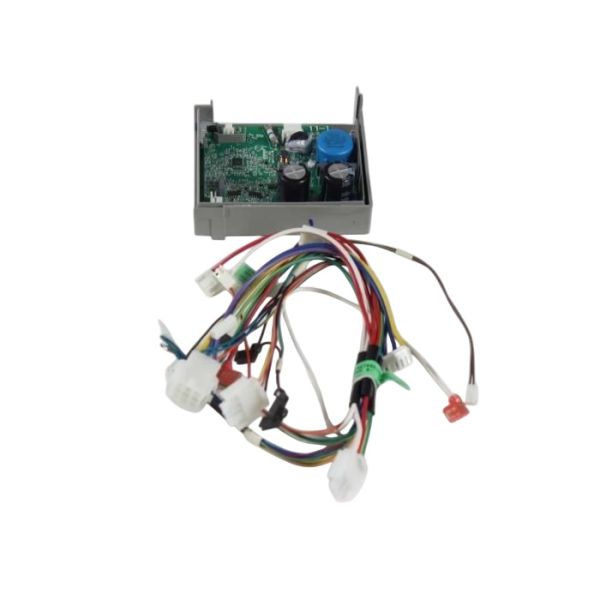

main product photo

Whirlpool 12002799 Refrigerator Electronic Control Board

Be the first to review this product
Special Price $296.67 Regular Price $365.95
In stock
Available Quantity:   30
SKU
12002799
✓ This Product Replaces: 67001358, 67006163, 103270

Product Description

The Whirlpool 12002799 Refrigerator Electronic Control Board regulates and monitors cooling systems to maintain the set temperatures for proper food storage. This component is responsible for the regulation of various refrigerator operations such as the cooling cycle, defrosting cycle, and compressor. It also helps in regulating the temperature and the internal parts of the equipment. The control board also helps in improving the general performance of the refrigerator by regulating the operations, avoiding formation of thick frost and increasing efficiency.
Add to Wish List
Refrigerator Parts, Control Boards,
5.5"X5.25"X8.5"
Manufacturer
https://www.hnkparts.com/media/catalog/product/1/2/12002799-17076.jpg

This Part Fits the Following Models (80)

Jenn-Air JS42FSDBFA Refrigerator Jenn-Air JS42FSFXDA Refrigerator Jenn-Air JS42FSFXFA Refrigerator Jenn-Air JS42FWDWDA Refrigerator Jenn-Air JS42FWDWFA Refrigerator Jenn-Air JS42FWFXDA Refrigerator Jenn-Air JS42FWFXFA Refrigerator Jenn-Air JS42PPDBDA Refrigerator Jenn-Air JS42CSDBDA Refrigerator Jenn-Air JS42CSDBFA Refrigerator Jenn-Air JS42CSDWDA Refrigerator Jenn-Air JS42CSDWFA Refrigerator Jenn-Air JS42FBFXFA Refrigerator Jenn-Air JS42FSDBDA Refrigerator Jenn-Air JS48FSFXDA Refrigerator
Showing 1-15 of 80

Product Overview:

Provides electronic control for applicable Whirlpool refrigerator functions. The WHIRLPOOL 12002799 Refrigerator Electronic Control Board forms part of the refrigerator's cooling control system and provides board-level control for the compressor and other electronically managed operations.

Control Processing:

Processes electrical information received through the refrigerator's control system and uses the processed information to establish corresponding control responses. Its internal electronic circuitry manages the electrical states required by connected circuits according to detected operating conditions.

Cooling Cycle Control:

Coordinates electronic control activity associated with cooling, compressor operation, and defrost functions. The board supports the compressor-related control required during cooling operation and coordinates applicable cycle changes as the refrigerator transitions between cooling and defrost operation.

Replacement Guidelines:

Replacing the Refrigerator Electronic Control Board is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the WHIRLPOOL part number 12002799 and the complete refrigerator model number before replacement. Replace the control board if deterioration affects electronic control, compressor operation, cooling cycles, defrost operation, or normal refrigerator performance.

Common Failure Symptoms:

  • Refrigerator not cooling properly.
  • Compressor failing to start.
  • Compressor operation becoming inconsistent.
  • Cooling operation becoming intermittent.
  • Defrost-related operation becoming abnormal.
  • Refrigerator operating cycles becoming irregular.
  • Electronic control responses becoming inconsistent.
  • Refrigerator operation stopping unexpectedly.

Equipment Compatibility:

The WHIRLPOOL 12002799 Refrigerator Electronic Control Board is intended for equipment that specifies part number 12002799. Verify the complete refrigerator model number and manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:

Brand: WHIRLPOOL

Part Number: 12002799

Product Type: Electronic Control Board

Appliance Type: Refrigerator

Reviews
Write Your Own Review
You're reviewing:Whirlpool 12002799 Refrigerator Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool 12002799 Electronic Control Board?

Inspect the board for dust or residue. Ensure all connectors are firmly seated. Test buttons and control inputs to verify accurate registration. Monitor operations to confirm the refrigerator responds correctly to settings during all cycles.

What are common issues with the Whirlpool 12002799 Electronic Control Board?

  • Temperature settings not responding.
  • Cycles not initiating.
  • Error codes appearing unexpectedly.
  • Defrost or cooling cycles failures.

What is the Whirlpool 12002799 used for?

The Whirlpool 12002799 provides electronic control for applicable refrigerator cooling, compressor, and defrost functions.

How does the Whirlpool 12002799 support refrigerator operation?

It processes operating information and provides corresponding electrical control responses to connected refrigerator components.

What does the Whirlpool 12002799 control?

It supports electronic control of applicable compressor operation, cooling cycles, defrost functions, and related refrigerator operations.

What are the signs of a failing Whirlpool 12002799?

Inconsistent cooling, compressor operation problems, irregular defrost operation, intermittent cycles, or abnormal electronic responses can indicate deterioration.

When should the Whirlpool 12002799 be replaced?

Replacement may be appropriate when the control board is damaged or no longer provides the electronic control required for normal refrigerator operation.

Installation Steps

Step1: Unplug the refrigerator to prevent electrical hazards.

Step2: Remove the access panel to reach the control board.

Step3: Disconnect all wiring connectors from the old board carefully.

Step4: Install the new control board and reconnect all wires securely.

Step5: Fasten screws and replace the access panel.

Step6: Restore power and test refrigerator functions to ensure proper operation.
