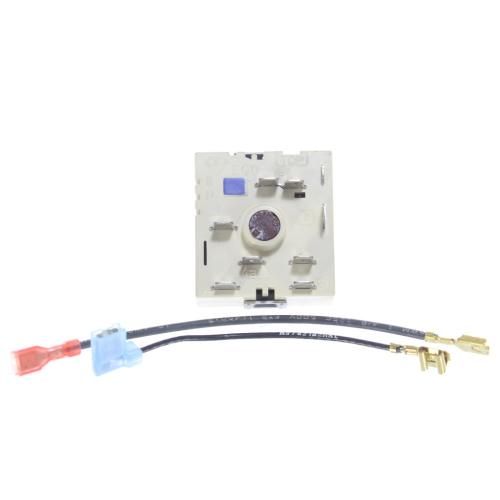

Whirlpool 12002125 Range Surface Element Control Switch

Be the first to review this product
$44.98
In stock
Available Quantity:   108
SKU
12002125

Product Description

The Whirlpool 12002125 Range Surface Element Control Switch helps to regulate the temperature on the cooktop for better and more accurate cooking results. This component controls the power supply to the burner and controls the heat as per the requirement. It works by regulating the amount of current that is supplied to the heating element to switch between temperatures easily.
Add to Wish List
6.2"X9.8"X2.15"
Manufacturer
✓ This Product Replaces: 71001612, 12002052, 74007715, 74007711, 7400789612002052
https://www.hnkparts.com/media/catalog/product/1/2/12002125_WHIRLPOOL_1.jpg

This Part Fits the Following Models (53)

Showing 1-15 of 53
NON-Wiseable.
Reviews
Write Your Own Review
You're reviewing:Whirlpool 12002125 Range Surface Element Control Switch
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The range oven should be disconnected from the electrical outlet and also the gas supply should be switched off if your oven operates on gas.

Step 2: The screws that secure the panel to the burner switch top should be extracted using a screwdriver.

Step 3: The wiring harnesses linked to the dual infinite top burner switch kit should be detached. The oven’s user manual may need to be consulted to familiarize yourself with the disconnection process for the wiring harnesses.

Step 4: The existing dual infinite top burner switch kit should be removed by carefully pulling it away from the cooktop.

Step 5: The new dual infinite top burner switch kit should be inserted into the appropriate slot, ensuring it is positioned tightly.

Step 6: The wiring harnesses should be reattached to the switch kit, confirming that each connection is securely made.

Step 7: The panel should be reinstalled on top of the range oven and tightly secured using the screws.

Step 8: The gas supply should be restored and it should be verified that the knobs are completely turned to the ‘Off’ position.

Step 9: The range oven should be reconnected to the electrical outlet and the functionality of the dual infinite top burner switch kit should be verified.

Please be aware that these instructions serve as general guidance and should always be followed alongside the manufacturer’s manual, if one is available.
